Description

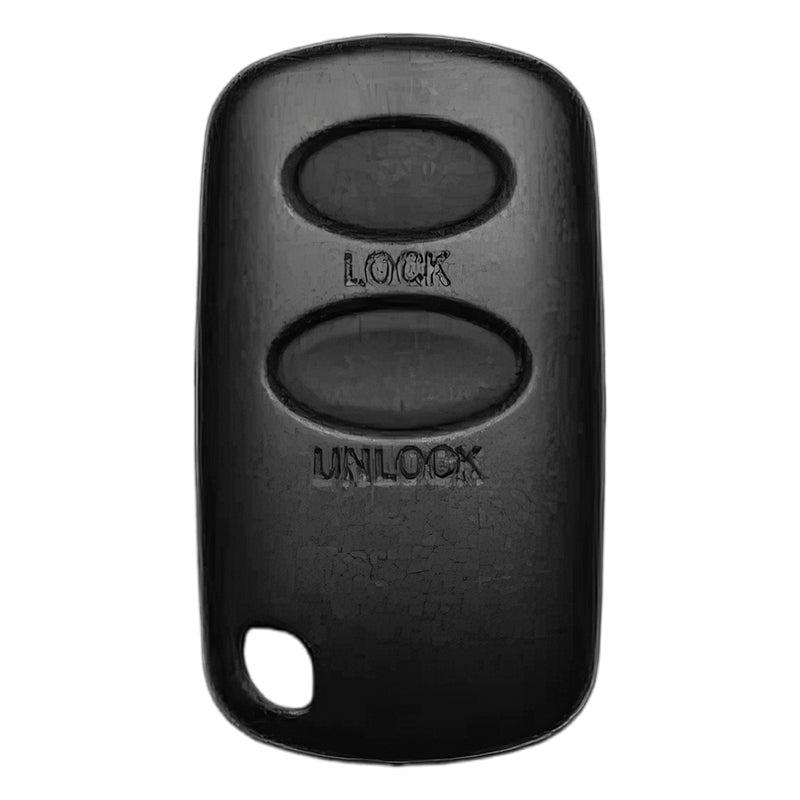

The remote's FCC ID is MOZD01TB. The remote is tested on keyless entry testers to ensure it works before we ship it to you. The remote comes with programming instructions to make it work with your car if your vehicle is onboard programmable - see below. Battery is included in remote and free tech support is available if needed.
Programming Requirments:
SUZUKI AERIO 2003 - Onboard Programmable
SUZUKI ESTEEM 2002 - Requires Locksmith
SUZUKI ESTEEM 2001 - Requires Locksmith
SUZUKI GRAND VITARA 2003 - Onboard Programmable
SUZUKI GRAND VITARA 2002 - Requires Locksmith
SUZUKI GRAND VITARA 2001 - Requires Locksmith
SUZUKI GRAND VITARA XL7 2003 - Onboard Programmable
SUZUKI GRAND VITARA XL7 2002 - Onboard Programmable
SUZUKI SWIFT 2001 - Requires Locksmith
SUZUKI VITARA 2003 - Onboard Programmable
SUZUKI VITARA 2002 - Onboard Programmable
SUZUKI VITARA 2001 - Onboard Programmable
SUZUKI XL-7 2003 - Onboard Programmable
Onboard Programming Procedure:
1. 4 remotes can be programmed into the receiver. If a 5th remote is programmed it will erase the 1st. If you want to delete a remote then program a remote 4 times. Confirm that all the doors are closed and the key is not in the ignition.
2. Open the driver door.
3. Perform these steps within 10 seconds. Insert the key into ignition and turn to ON position, then back to OFF and remove key.
4. Within 20 seconds close and open the driver door 3 times.
5. Within 10 seconds insert key into ignition and turn to ON position then back to OFF and remove key.
6. Press and hold both LOCK and UNLOCK on the remote to be programmed for at least 5 seconds and then release.
7. Within 5 seconds press the LOCK button on the same remote and release. All doors will automatically lock and unlock to confirm that remote has been learned.
8. Test remote.
9. Repeat the whole procedure for additional remotes up to four total.
Troubleshooting: If the procedure above does not work try this:
1. 4 remotes can be programmed into the receiver. If a 5th remote is programmed it will erase the 1st. If you want to delete a remote then program a remote 4 times. Confirm that all the doors are closed and the key is not in the ignition.
2. Open the driver door.
3. Perform these steps within 10 seconds. Insert the key into ignition and turn to ON position, then back to OFF and remove key.
4. Within 20 seconds close and open the driver door 3 times.
5. Within 10 seconds insert key into ignition and turn to ON position then back to OFF and remove key. Locks should cycle to confirm the system has entered programming mode.
6. Press UNLOCK on the remote you wish to program. The door locks should cycle to confirm.
7. Repeat the whole procedure for additional remotes up to four total.
