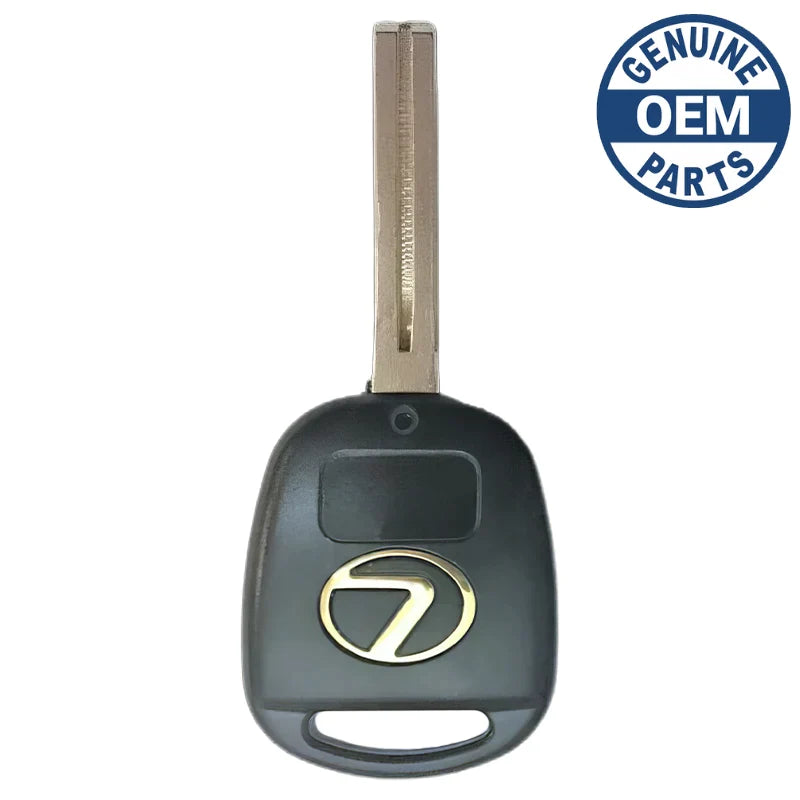

2002 Lexus ES300 Remote Head Key PN: 89070-53531, 89070-53530

SKU: 4301A-OEM

Condition: OEM New
Price:
Sale price$164.95

Shipping calculated at checkout

Stock:
Ships in 3-5 days

Description


FCC ID : HYQ1512V

Replaces Part Numbers : 89070-53530, 89742-24070, 89742-24021

Brand : Avicero

Condition : Brand New Aftermarket (No Logo)


Programming Procedure:
1. Start with the following conditions:
a. Key is out of the ignition
b. Driver door is open (all other doors are closed)
c. Driver door is unlocked (other door locks don?? matter).
2. Lexus GS300 (1998-2005), Lexus GS400 (1998-2000), Lexus GS430 (2000-2005), Lexus IS300 (2001-2005), Lexus LS400 (1998-2000): Insert the key into the ignition (don?? turn it) and pull it out.
2. Lexus ES300 (2002-2003): Perform the next two steps within 5 seconds:
a. Insert the key into the ignition (don?? turn it) and pull it out.
b. Insert the key into the ignition (don?? turn it) and pull it out.
3. Lexus GS300 (1998-2005), Lexus GS400 (1998-2000), Lexus GS430 (2000-2005), Lexus IS300 (2001-2005), Lexus LS400 (1998-2000): Perform these steps within 40 seconds:
a. Using the power lock/unlock switch on the driver?? door, perform 5 lock/unlock cycles starting with lock. A lock/unlock cycle consists of pressing the power lock switch, followed by pressing the power unlock switch on the driver?? door panel. Use an even pace and try
to go relatively fast.
b. Close then open the driver?? door.
3. Lexus ES300 (2002-2003): Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Insert the key into the ignition (don?? turn it) and pull it out.
4. Lexus LS400 (1998-2000): Perform these steps within 40 seconds:
a. Perform 5 lock/unlock cycles again with the switch on the driver?? door starting with lock.
b. Insert the key in the ignition cylinder. Turn the ignition to ON (as far as you can go without cranking your engine) then back to OFF two times.
c. Remove the key from the ignition. Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating successful entry into programming mode.Return to Step 1 if the locks do not cycle at this point.
4. Lexus GS300 (1998-1999): Perform these steps within 40 seconds:
a. Using the power lock/unlock switch on the driver?? door, perform 5 lock/unlock cycles starting with lock (just as you did previously).
b. Insert Key in ignition.
c. Turn the ignition to ON (as far as you can go without cranking your engine), then back to OFF.
d. Remove the key from the ignition.
4. Lexus GS300 (2000-2005), Lexus GS400 (1998-2000), Lexus GS430 (2000-2005), Lexus IS300 (2001-2005): Perform these steps within 40 seconds:
a. Using the power lock/unlock switch on the driver?? door, perform 5 lock/unlock
cycles starting with lock (just as you did previously).
b. Insert Key in ignition.
c. Turn the ignition to ON (as far as you can go without cranking your engine), then back to OFF two times.
d. Remove the key from the ignition.
4. Lexus ES300 (2002-2003): Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Close the driver?? door.
d. Insert the key into the ignition.
e. Turn the ignition to ON (as far as you can go without cranking your engine) then back to OFF.
f. Remove the key from the ignition.
5. Lexus LS400 (1998-2000): Perform these steps within 40 seconds:
a. Press any button on the first remote for 1 second and release. Within 3 seconds the door locks should cycle once. If door locks do not cycle then repeat this step because your remote has not been accepted.
b. Close then open the door once.
c. Press any button on the same remote for 1 second and release. Within 3 seconds the door locks should cycle to indicate successful programming. If they do not cycle or they cycle twice then your remote has not been accepted.
d. If programming additional remotes (including existing remotes which must be
programmed at this time) then repeat steps 5a-c for each remote (within 40 seconds of previous remote.)
e. Close the driver?? door.
5. Lexus GS300 (1998-2005), Lexus GS400 (1998-2000), Lexus GS430 (2000-2005), Lexus IS300 (2001-2005), Lexus ES300 (2002-2003): Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.
6. Perform these steps within 40 seconds:
a. Press the LOCK and UNLOCK buttons on the first transmitter simultaneously for 1 second and release.
b. Immediately after letting go of the LOCK and UNLOCK buttons, press the LOCK button by itself and release. Within 3 seconds, the door locks should cycle (lock then unlock) once indicating successful programming. If the door locks don?? cycle, or cycle twice, repeat steps 6a and 6b as the remote has not been accepted.
c. Repeat steps 6a and 6b for each transmitter that will operate the vehicle, including any old transmitters.
d. Lexus GS300 (1998-2005), Lexus GS400 (1998-2000), Lexus GS430 (2000-2005), Lexus IS300 (2001-2005): Close driver door.
d. Lexus ES300 (2002-2003): Open driver?? door.
6. Test transmitter(s) for function.


Works on :
Lexus ES300 (2002-2003), Lexus GS300 (1998-2005), Lexus GS400 (1998-2000), Lexus GS430 (2000-2005), Lexus IS300 (2001-2005), Lexus LS400 (1998-2000).
